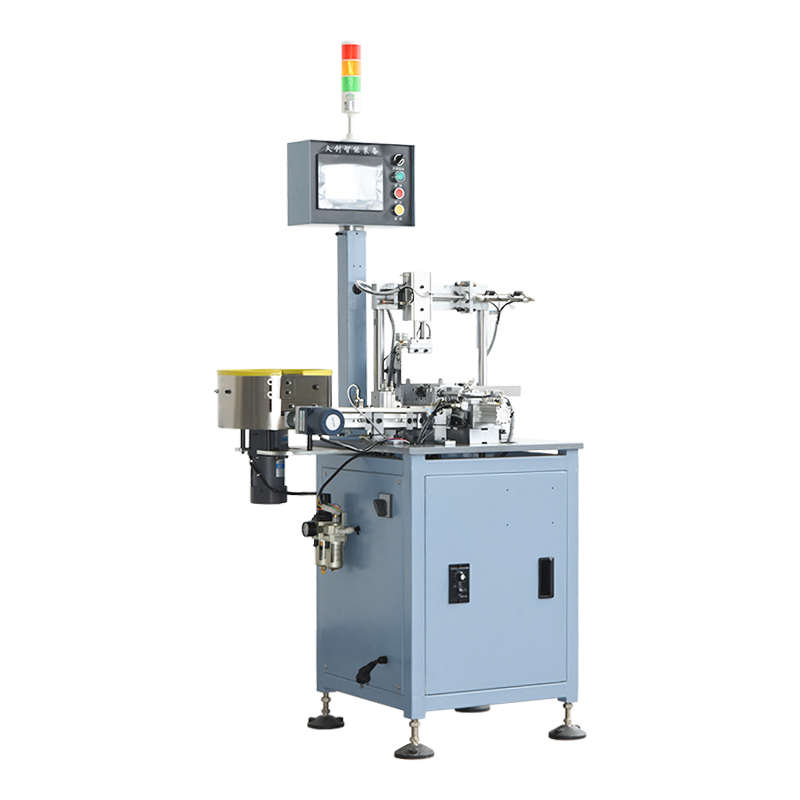

Automatic Bearing Clearance Testing Machine

SYSTEM DESCRIPTION:

Process flow:

Feeding conveyor belt → Flexibility testing → Rejection of non-conforming products → Clearance testing → Rejection of non-conforming products → Finished product discharge

Products Description

Message

Function Introduction:

Loading mechanism: automatic loading of bearings;

Flexibility adopts the fiber optic ball finding method. The stepper motor drives the outer ring of the product to rotate, and the fiber optic senses the steel ball. The number of bearing rings is calculated by calculating the number of steel balls through data. Imitate manual selection flexibility and low misjudgment rate.

Clearance detection: vertical measurement method (repeated 10 times for a single product with a measurement deviation of ≤ 1um)

NG product removal: The flexibility and clearance detection range can be set by oneself. If the detection structure exceeds the set range, it will be considered as NG product and automatically removed.



Featured features:

Customizable series of error prevention functions

Overall appearance design with hood added

Customized operation direction for the entire machine, suitable for various whole line schemes

Device model JR-YX01 JR-YX02
Scope of application Bearing outer diameter 10-60mm Bearing outer diameter 60-100mm
Work Efficiency ≤ 3 seconds ≤ 4 seconds
Working Voltage 220V/50Hz/1.5A
Working air pressure ≥0.4MPa
Overall dimensions L800×W600×H1800mm L1100×W800×H1800mm
