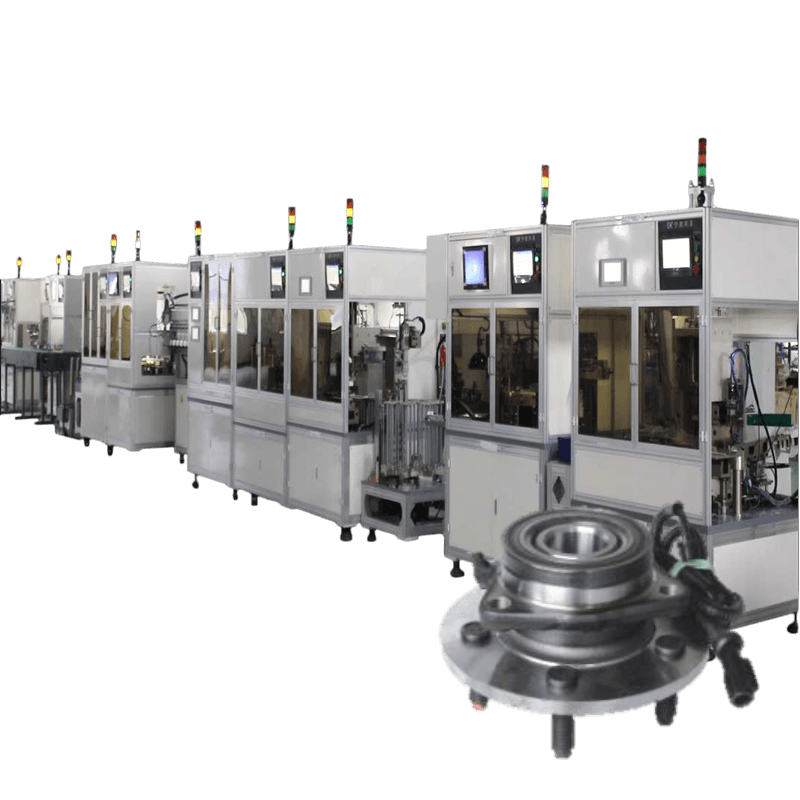

READ MORELoading and lifting machine→Shell clearance detection machine→Bearing outer ring press installation machine→ABS press installation machine→Oil seal press installation machine→Bolt press installation machine→Automatic turnover machine→Gap detection machine→Comprehensive detection machine→Laser marking machine→Finish cap tie post attaching machine → Unloading and jacking machine
BILE |
≤400mm |
Marking |
Laser marking of radial circumference and end face |
Precision |
Gap between ABS and wheel hub assembly surface ≤ 0.03 mm |
Gap between oil seal and Hub assembly surface ≤ 0.03 mm |
|
Hub assembly oil gap detection accuracy ±5μm |
|
Bolt height detection accuracy 0.02 mm, error ≤ ± 0.02 mm |
|
The detection accuracy of the parallel difference between the upper oil seal and the inner ring is 0.01mm, with an error of ≤±0.015mm |
